The Lunar 'Obelisks' Are Boulders

Seven objects in a 1966 lunar orbiter photo threw long, spindly shadows and got compared to Egyptian obelisks. Shadow geometry cuts the towers down to boulders under a grazing Sun, while honestly leaving one part — their arrangement — marked unresolved.

The Observer's Index Lab
dark-mathmoonshadow-geometrymethodology

In 1966 an orbiter photographed seven objects in the Sea of Tranquillity throwing long, spindly shadows. Someone compared them to Egyptian obelisks; a book quoted one at 213 metrestall. This is a cleaner case than a “face” — because the whole claim is shadow length → height, and that’s arithmetic. We did the arithmetic. And then, honestly, we found the one part it doesn’t settle.

Where we land:resolved. Shadow geometry cuts the “obelisks” to boulders under a grazing Sun — with one part, their arrangement, left honestly marked unresolved.

Lunar Orbiter II frame LO2-61H3: several bright objects casting long, narrow shadows across the Sea of Tranquillity under a low Sun.
Lunar Orbiter II, 1966(LO2-61H3). The “cuspids” — bright objects casting long, narrow shadows. The Sun sits just 10.9° above the horizon. Image: NASA / Lunar Orbiter.

A shadow’s length is not a height. It’s a height times a number that depends on the Sun. When the Sun is high, shadows are stubs; when it grazes the horizon, a pebble throws a shadow like a flagpole. Here the Sun is at 10.9° — about as low as it gets. At that angle the shadow of anything is 1 / tan(10.9°) = 5.2× its height. So the arithmetic runs the other way: divide the shadow by 5.2 to get the object.

Shadow-geometry diagram: a grazing 10.9-degree Sun turns a 21-metre boulder's height into a 110-metre shadow — a 5.2-to-1 ratio.
Shadow geometry. At a grazing 10.9° Sun a shadow runs 5.2×the object’s height — so Cuspid 5’s 110 m shadow reads back to a ~21 m boulder. Divide the shadow by 5.2 to get the rock.

Cuspid 5, the biggest, casts a 110 m shadow. Divide by 5.2 and it stands ~21 mtall — a large boulder, roughly a six-storey rock. The famous “213 metres” from a popular book? Run it forward: a 213 m spire at this Sun angle would throw an 1,106 m shadow — ten timeswhat’s in the photograph. The figure simply forgot the tangent. There are no towering obelisks here; there are boulders, and a Sun so low it stretches their shadows into spires.

What the math proves

The objects are boulder-scale (the tallest ~21 m); the long shadows are the 10.9° Sun, not anomalous height. The “213 m obelisk” is a 10× arithmetic error. Their recoverable shapes are wide and rounded — rocks, not spires.

What honestly stays open

The arrangement. Cuspids 4 and 6 really do sit at the base of neat isosceles triangles with the others — a genuine geometric coincidence, or attention finding order in scatter? It isn’t repeated elsewhere on the Moon (which argues chance), but a single low-res 1966 frame can’t settle a pattern claim. We mark it: probably coincidence — not proven.

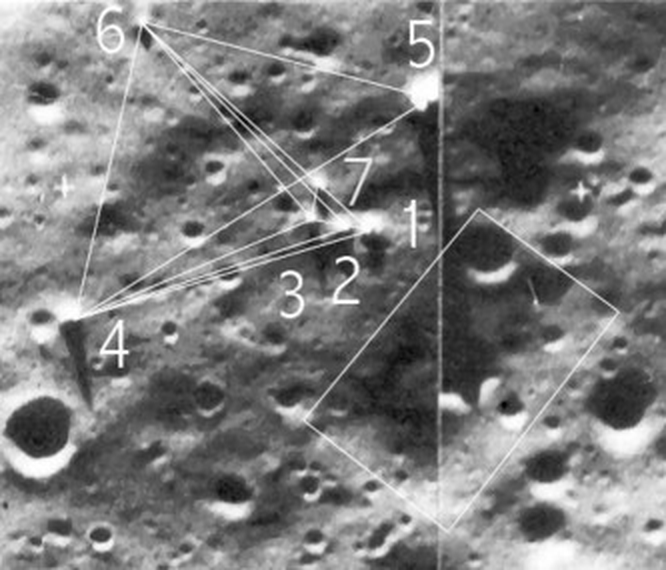

Diagram of the geometric arrangement of the seven cuspids, tracing the isosceles triangles some readers see between them.
The arrangement.The heights are settled; this is the part that keeps a sliver of doubt — real geometry, most likely chance, but honestly unresolved from one frame. (Analysis diagram after K. Matthews.)
Dividing a shadow by a tangent is proof. Reading triangles in seven dots is a coin-flip you don’t get to call from one photograph. An honest method says both out loud.

Verdict — prove and doubt

Proven:no obelisks. The cuspids are boulders up to ~21 m; their spire-like shadows are a low Sun doing what a low Sun does, and the headline “213 m” is an order-of-magnitude arithmetic slip. Unresolved:whether their layout is a real pattern or pareidolia — most likely coincidence, but not something a single 1966 frame can decide. This is the case working exactly as it should: the math kills the big claim, and refuses to over-claim the small one.

Why our math sees more — both ways

Surface-first analysis looks at “spiky shadows” and feels a monument. Structure-first analysis asks what geometry those shadows require — and geometry answers flatly: 21 m rocks under a 10.9° Sun. But the same discipline that settles the height is what forbids us from settlingthe arrangement, because a subjective pattern in seven points has no clean measurement from one frame. Dark Math isn’t a debunking machine. It proves what’s provable and it marks the doubt where the doubt is real— which is the only way a method earns trust the next time it says “settled.”

Sources

image / analysis — Lunar Orbiter II frame LO2-61H3(NASA, 2 Nov 1966), Sea of Tranquillity ~15.5°E 5.1°N · shadow-geometry after K. Matthews, “The Blair Cuspids.”

the numbers —Sun elevation 10.9° · Cuspid 5 shadow ≈ 110 m → height ≈ 21.2 m (flat-ground assumption) · popular “213 m” = a dropped tangent.

background —“Blair Cuspids” (Lunascan Project) · “Transient / anomaly” lunar literature.

method  shadow geometry: height = shadow × tan(Sun elevation) · order-of-magnitude check on the popular claim · honest bound on the pattern claim

ethos  prove what’s provable · mark the doubt where it’s real · earned vs reaching, both directions
